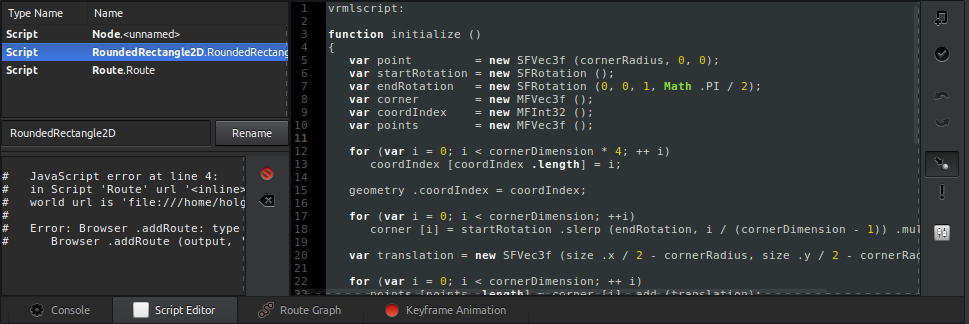

Using the Script Editor
The Script Editor allows you create scripts that run within your scene. Tip: use the Node Properties Editor to add, remove and edit Script and shader fields.
A script is written in JavaScript, a lightweight, platform-independent programming language. JavaScript provides functions that are called when events come into the script, access to fields within the script, logic to operate on the fields, and the ability to send events from the script.
A detailed description of JavaScript and the Script node can be found at:
- http://www.web3d.org/documents/specifications/19777-1/V3.0/Part1/functions.html
- http://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/scripting.html
- https://developer.mozilla.org/de/docs/JavaScript/Guide
In Titania, the script itself is contained in the url field of the Script node, as a single string. The string must begin with javascript: The script defines functions for each inputOnly and inputOutput fields. Internal fields called initializeOnly and outputOnly fields can be used as variables.
Here is a simple example of including a Script node in a X3D file:
#X3D V3.3 utf8
DEF XFORM Transform {
children [
Shape {
geometry Cone { }
},
DEF SENSOR TouchSensor { },
DEF SCRIPT Script {
inputOnly SFBool set_active
outputOnly SFFloat fraction_changed
initializeOnly SFFloat fraction 0
url "javascript:
function set_active (value, time)
{
if (!value)
{
fraction = fraction + 0.1;
fraction_changed = fraction;
}
}"
},
DEF INTERP PositionInterpolator {
keys [0.0, 1.0]
values [0 0 0, 3 0 0]
}
]
}
ROUTE SENSOR.isActive TO SCRIPT.set_active
ROUTE SCRIPT.fraction_changed TO INTERP.set_fraction
ROUTE INTERP.value_changed TO XFORM.translationHere's a quick guide to the Node Properties Editor:
-

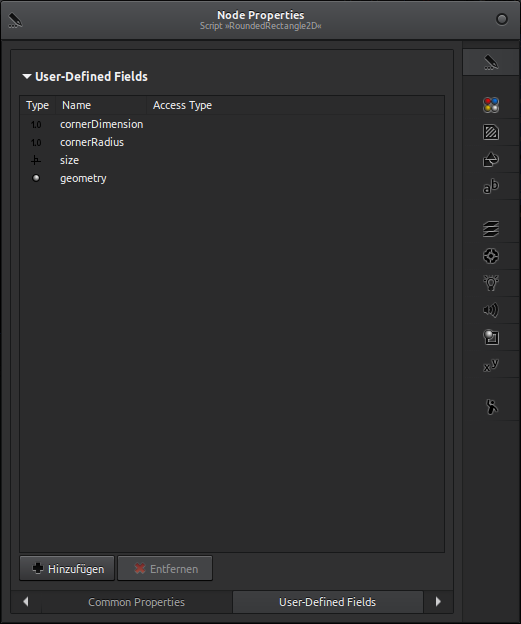

Node Properties
- Type Name: the type name of your selected node.
- Name: give your node a describing name to easily identify it later.
-
Common Properties:
- Component: the component the node belongs to. You can find plain nodes of this type in the Library.
- Container Field: When you group a node of a specific type put it into this field.
-
User Defined Fields:
- Edit: double click one item to edit a field.
- Add/Remove: when you add a field, you can specify its access type, data type and field name.
- Drag & Drop: to reorder your defined fields to your desired order.
-
Source Code Field:
- Edit: brings up the script in your preferred text editor.
- Cancel/Ok: Click the Ok button to apply your changes.
Find it: Click the Node Properties Editor button on the Toolbar while a Script node is selected to add, remove and edit Script or shader fields.
Use the Script Editor to build special behaviors into your scene file using scripts. A script can be routed to the incoming and outgoing events that are part of the nodes in your scene. It can also be connected to sensors that notify the script when certain things happen--for example, when the user approaches a certain spot, clicks an object, or bumps into a wall.
To create a Script node or shader node, go to the library. Go to Components > Scripting and double click Script.x3dv. A newly created Script node appears in the Outline Editor.
To create a shader node, go to the library. Go to Components > Shading. Use ComposedShader in conjuction with ShaderPart or use ProgramShader in conjuction with ShaderProgram.
You'll need some programming knowledge to use the Script Editor, and you need to understand X3D as well. With this tool, you can create scripts written in JavaScript, a platform-independent programming language.
Use the User Defined Fields: Add button to specify the basic components of your script, which can be any number of the following:
- initializeOnly
- inputOnly
- outputOnly
- inputOutput
Each inputOnly has an associated function with the same name inside the script. Each inputOutput has an associated function with the same name inside the script but starting with set_ thus you have to name your function set_fieldName. When an inputOnly is sent to the Script node with a new value, this function is called and the new value for the event is passed in.
First, you specify each initializeOnly, inputOnly, outputOnly, and inputOutput field with the Add button. Field and event names must be unique within the script. When you press Edit button in the CDATA Field section, the Script Editor creates a template file with the events and fields you specified, as well as a template function for each inputOnly.
You fill in the rest of the template, including the eventIn function code and any other necessary code, using your favorite text editor. The Script Editor takes care of adding the Script node that contains your script to the scene file.
Every inputOnly/inputOutput function has two predefined arguments: a value and a time. The value is the new value of the incoming event. The time is a time stamp, of type double. When you edit the script, you can change the name of these arguments. If you use only one argument, it is assumed to be the value.
An outputOnly is simply a piece of data that the script sends out along a route. It does not have an associated function within the script. You can assign new values to an outputOnly that will send later along its connected routes. You can also read out the value assigned to an outputOnly.
You can define an *initialize ()*method. This method is invoked before the browser presents the world to the user and before any events are processed by any nodes in the same X3D file as the Script node containing this script. Events generated by the initialize() method have timestamps less than any other events generated by the Script node. This allows script initialization tasks to be performed prior to the user interacting with the world.
You can define an eventsProcessed () method that is called after one or more events are received. This method allows scripts that do not rely on the order of events received to generate fewer events than an equivalent script that generates events whenever events are received. If it is used in some other time-dependent way, eventsProcessed () may be nondeterministic, since different browser implementations may call eventsProcessed () at different times.
For a single event cascade, a given Script node's eventsProcessed () method shall be called at most once. Events generated from an eventsProcessed () method are given the timestamp of the last event processed.
You can define a prepareEvents () method that is called exactly once per frame. prepareEvents () is called before any ROUTE processing and allows a Script to collect any asynchronously generated data, such as input from a network queue or the results of calling field listeners, and generate events to be handled by the browser's normal event processing sequence as if it were a built-in sensor node.
Associate a particular script with an object or group of objects by grouping it in the Outline Editor to a set of nodes. If the object is cut and pasted into the scene, the local script follows along with its associated object. To create a local script, first select the object to which the script is to be attached, then select the group node into which you want to place the script, then select Edit > Add To Group in the global menu. Global scripts are scripts located at the root of the scene and are not associated with any object. You can create global scripts at any time, by double clicking the Script file in the Library. Note: Go to Components > Scripting > Script.
These are the general steps required to create a script. The Try It! section offers a brief case study that creates a sample script and routes to events.
- Create and name the script. If it is a global script, simply go to the Library and double click Components > Scripting > Script. If it is a local script, select the script, then select the object in the scene to attach the script to and choose Edit > Add To Group in the global menu. (The Script node appears in the Outline Editor as soon as the script is created.) Select the script and open the Node Properties Editor, type a name for the script in the box provided (always give your Script nodes describing names).
- Specify the events and fields used in your script. Choose User Defined Fields > Add. A dialog box appears, prompting you to select the access type (initializeOnly, inputOnly, outputOnly, or inputOutput), as well as the field data type and name. Fields and events cannot have the same names.
- Create a trigger sensor for the script using the Library. Current choices for the sensor are:
- EnterWorld prototype: trigger the animation when the scene is first loaded;
- Collision Node:�� trigger the animation when the user collides with a particular object;
- ProximitySensor:�� trigger when the user is within a certain distance of an object
- TouchSensor:�� trigger when the user clicks a particular object;
- Viewpoint Binding:�� trigger when a viewpoint is bound (locked) to the camera;
- VisibilitySensor:�� trigger when a particular object or group of objects is visible.
- Now you're ready to program. Click the Source Code > Edit button. Your default text editor appears on the screen, with a script template containing the events and fields you specified in step 2. Fill in the rest of the script.
- You can make intermediate saves of the script in your text editor and check the script's syntax. Errors are printed in the Console window located within the footer.
- Save the script and close the text editor window.
- Open the Outline Editor to route the script to the objects you want it to affect.
Fields define the persistent state of nodes, and values which nodes may send or receive in the form of events. X3D supports four types of access to a node''s fields
- initializeOnly access, which allows content to supply an initial value for the field but does not allow subsequent changes to its value, except within the script that defines the field;
- inputOnly access, which means that the node may receive an event to change the value of its field, but does not allow the field''s value to be read;
- outputOnly access, which means that the node may send an event when its value changes, but does not allow the field's value to be written, except within the script node that defines the field; and
- inputOutput access, which allows full access to the field: content may supply an initial value for the field, the node may receive an event to change the value of its field, and the node may send an event when its value changes.
An inputOutput field can receive events like an inputOnly field, can generate events like an outputOnly field, and can be stored in X3D files like an initializeOnly field. An inputOutput field named zzz can be referred to as »set_zzz« and treated as an inputOnly, and can be referred to as »zzz_changed« and treated as an outputOnly field. Fields with inputOutput access or inputOnly access are usually collectively referred to as input fields, fields with inputOutput access or outputOnly access are collectively referred to as output fields, and the events these fields receive and send are called input events and output events, respectively.
The initial value of an inputOutput field is its value in the X3D file, or the default value for the node in which it is contained, if a value is not specified. When an inputOutput field receives an event it generates an event with the same value and timestamp.
The recommendations for naming initializeOnly fields, inputOutput fields, outputOnly fields, and inputOnly fields for built-in nodes are as follows and we recommend to follow these recommendations for user defined fields too:
- All names containing multiple words start with a lower case letter, and the first letter of all subsequent words is capitalized (e.g., addChildren), with the exception of set_ and _changed, as described below
- It is recommended that all inputOnly fields have the prefix »set_«, with the exception of the addChildren and removeChildren fields
- Certain inputOnly fields and outputOnly fields of type SFTime do not use the »set_« prefix or »_changed« suffix
- It is recommended that all other outputOnly fields have the suffix »_changed« appended, with the exception of outputOnly fields of type SFBool.
